OPGW Tower Joint Box

OPGW Tower joint box

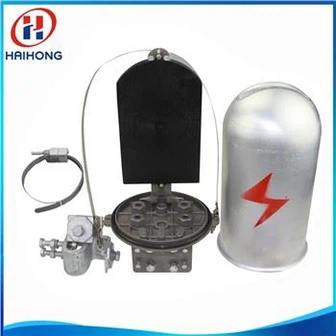

The aluminium alloy joint box are applicable for connection protection of special optical cables,with the functions of direct and branch connection, with the maximum of 6 optical cables, which mainly for overhead rods and towers.

1. Large scope of application, simple structure .Suitable for OPGW optical cable and ADSS optical cable,Max diameter 22mm ，Max Number of optical fiber cores 44 cores.

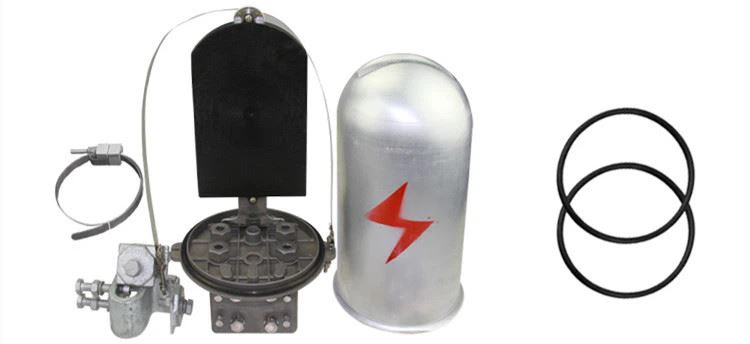

2. Good sealing, the product is sealed with high-quality silicone rubber sealing ring, and the sealing is 100Kpa.High mechanical strength, good vibration resistance.

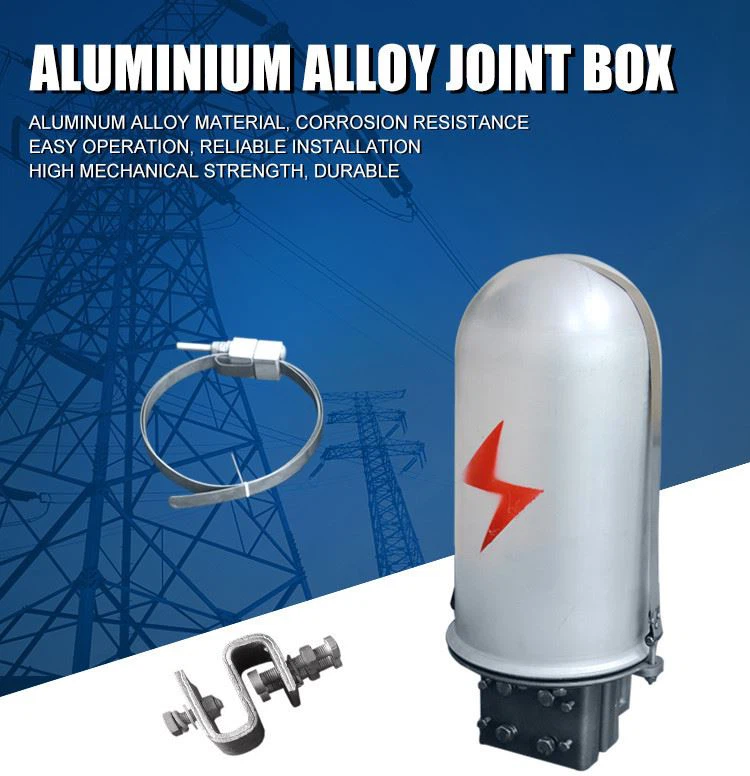

3. The aluminium alloy joint box is made of high-quality high-strength aluminum alloy material, the surface is treated with anti-oxidation, and it is corrosion-resistant,Compression resistance (2kN). Impact resistance, bending resistance.

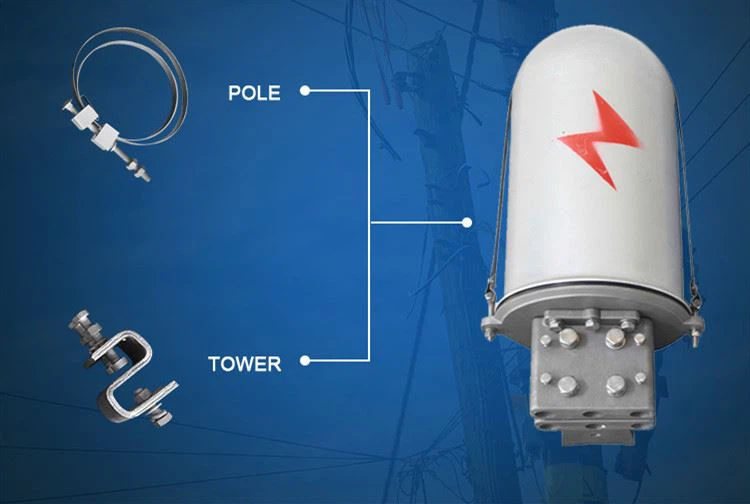

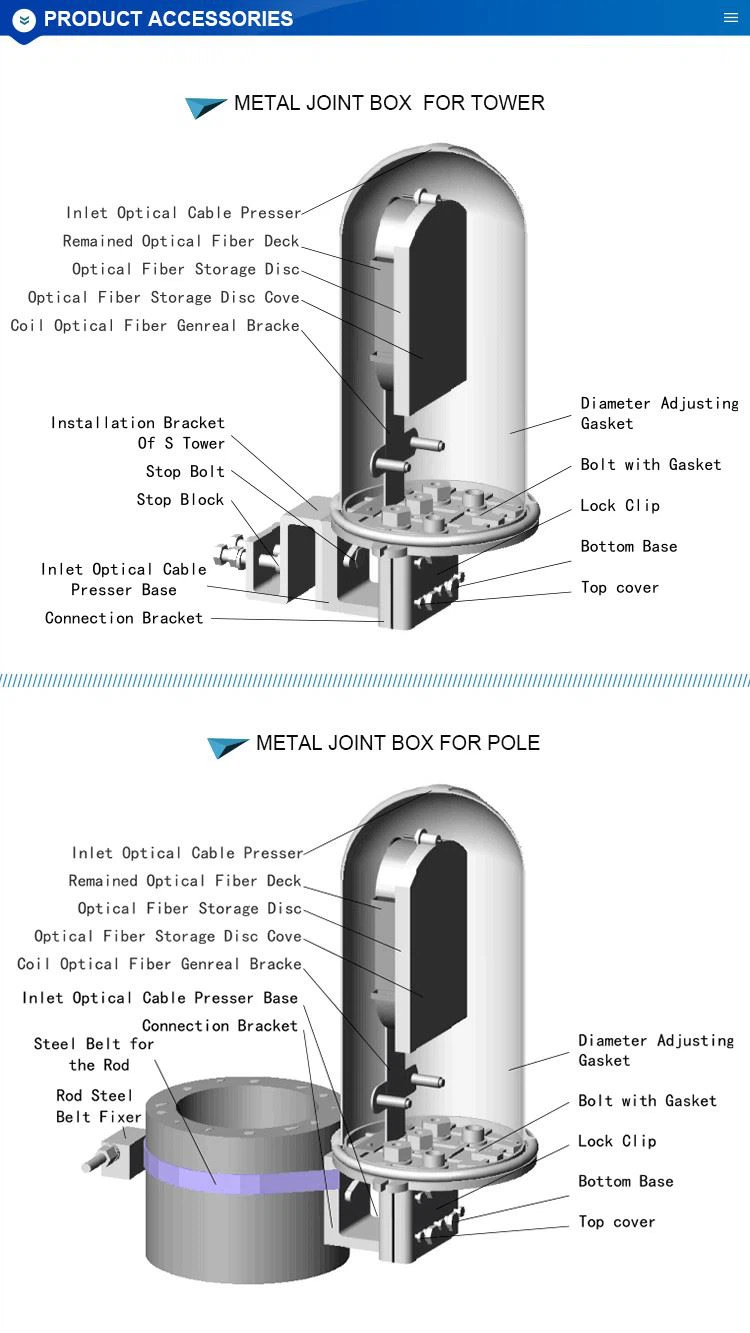

4.We have 2 kids,one used for POLE,one used for TOWER.they have the same functions，but the fittings is different.

The main function of the splice closure is fusion, products and preformed of fiber

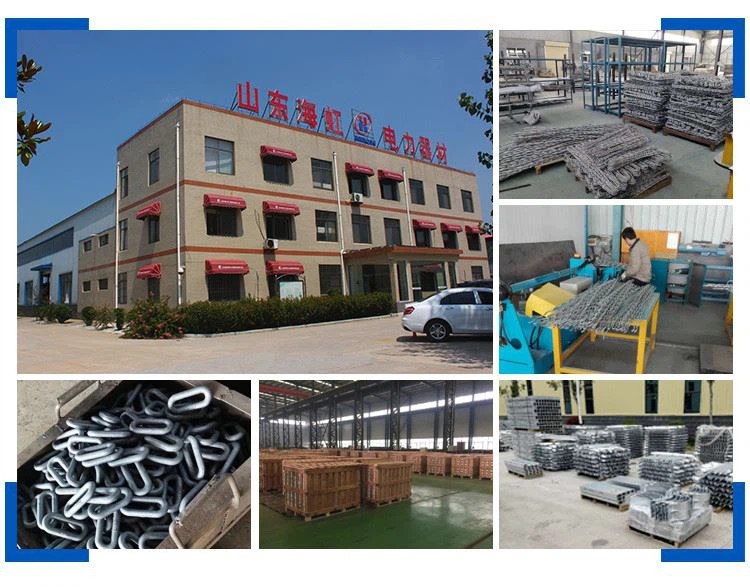

Shandong HaiHong Electric Power Equipment CO.,LTD,established in 2007, Located in Shandong, China (Mainland). We have 3000 square meters factory. Our main product including ADSS OPGW accessories(Performed Tension Clamp, Preformed Suspension Clamp,Vibration Damper, Cable Joint Box, Down Lead Clamp) and so on.HaiHong have advanced production testing equipment, and with reference to the United States, Japan, Germany and other advanced industrial countries of technical standards, product quality, both at home and abroad enjoy high reputation, high quality quality of service, good reputation, has won the highly recognized by the majority of users.

The splice box is one of the very important equipment in the construction of the optical cable line project, and it has an important impact on the quality of the optical cable line as well as its service life. OPGW cable has wide application, it has many fiber cores, like OPGW 96, 48, 24, etc. Concerning OPGW, we will introduce the usage and installation skills of OPGW joint box in this article.

If you are interested, you can click here to get a free quote for high-quality OPGW joint box.

1. Specifications:

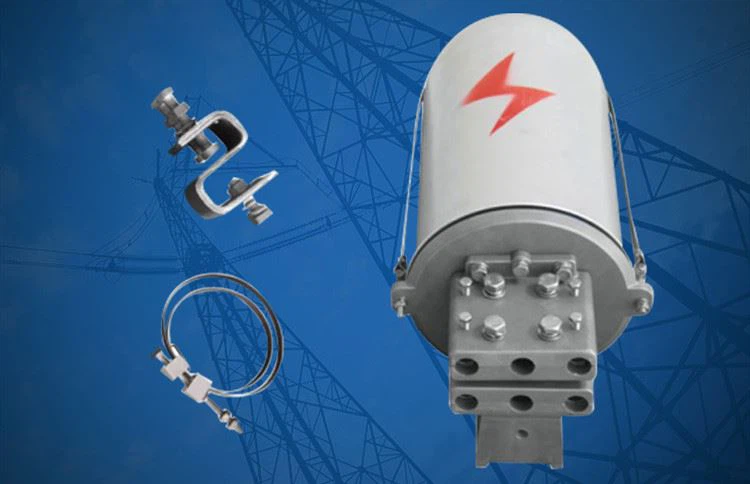

OPGW joint closure for tower
aluminum alloy
high mechanical strength
easy maintenance
cores:12,24,36,48,72,96

2. OPGW joint closure for tower:

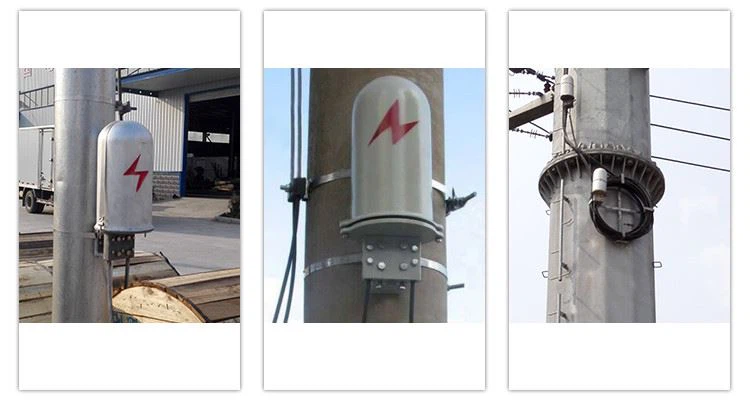

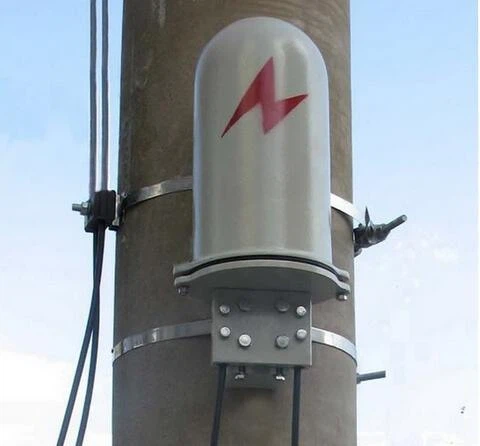

Usage: Suitable for OPGW cable connection protection, has the function for direct connections and divergence connection, which can out of 4 cable, installed in the overhead pole, tower.

Structural features:
a. Joint colsure using aluminum alloy shell, resist-corrosion, high mechanical strength.
b. Joint closure seals with seal ringand silicone, simple operation, open repeatedly, easy maintenance.
c. can make joint closure connect ground according to the requirements ,equipped with the special fixture of towers and pole.

3. Technical parameters:

a. fiber radius of curvature ≥ 43mm.

b. fiber length of the plate to stay ≥ 1500mm.

c. additional attenuation of optical disks to stay≤ 0.01dB.
d. the maximum capacity of fiber optic≤ 144-core optical fiber.

e. suitable temperature range -40 °C ~ +80 °C.

f. flattening performance 2000N/100mm.
g. Weight 6.7kg. h. Overall dimensions 480mm (H) × 200mm (φ).

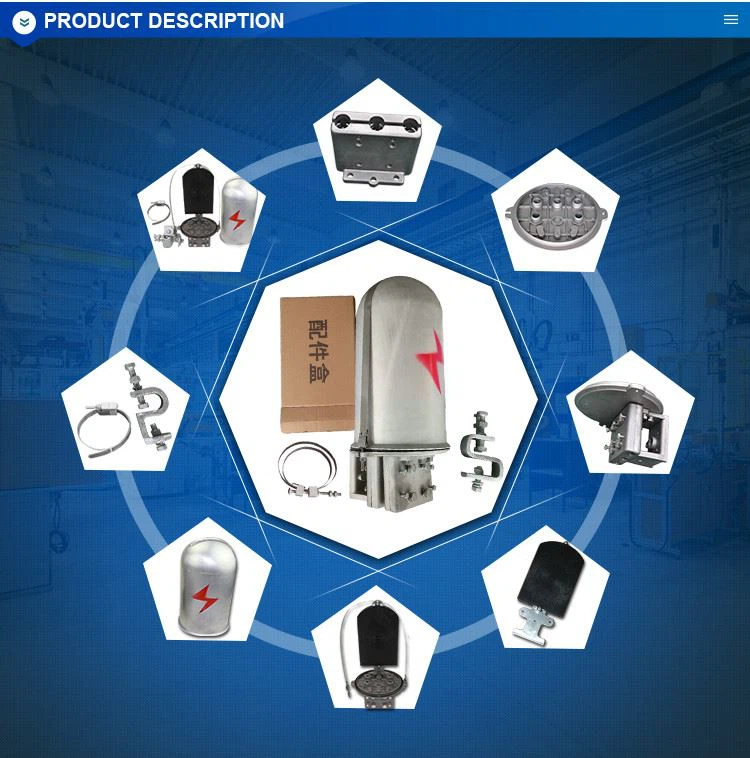

4. OPGW Joint closure Accessories List NO.:

 1 Hot expansive tube for connection 1 pc

 2 Fiber tube 2-5 rot

 3 Protective Optical Fiber Tuber 2-6 set

 4 Banding belt 4-12 rot

 5 Anti-theft banding 1 rot

 6 Adhesive tape 1 roll

 7 Electrician tape 1 roll

 8 Small rubber 1 pc

 9 MDF pressure logo 1 set

10 Abrasive paper 1pc

11 Diameter Adjusting Gasket 1 set

12 M12 center bolt Tower dedicated1 set

13 Logo sign and Coding 1set

14 Oprtation Glove 1set

15 Certificate of product qualification 1pc

16 Instruction of products1pc
