Aluminum Alloy Suspension Clamp for ADSS Short Span

On the basis of market segmentation, we concentrate our advantages and strengths to stabilize the existing market and expand the market share of our high value-added ADSS Corona Coil, Preformed Guy Grips, Preformed Tension Clamp. Our talent concept is, respect talent, explore potential, develop talent, and make the best use of it. As a company with global operations, we are always concerned about environmental protection in the places where we operate.

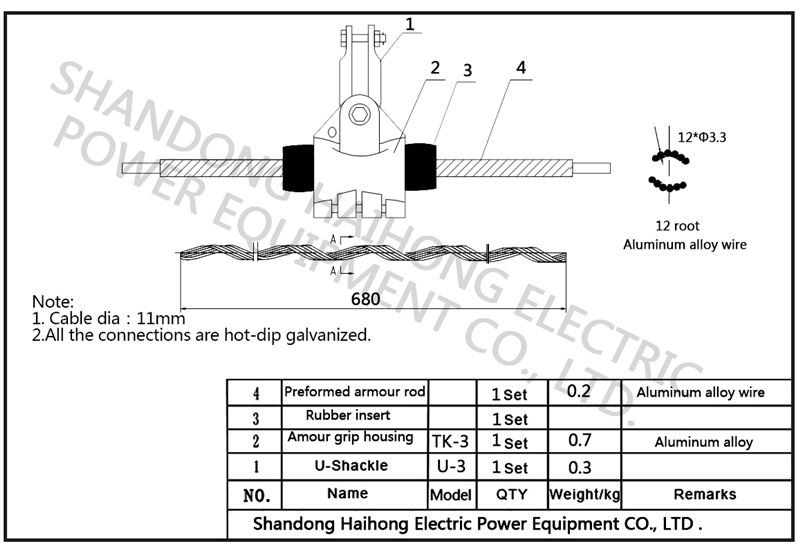

Product Drawings:

Product installation:

（Make sure that the suspension clamps are matched with the cable before installation.）

1.Use a thin tape or marker to make a mark at the center of the cable suspension point.

2.Make the preformed armor rods form a group of 2-3 beams.Align the markings in the center of the beam with the installation markings made in the first step and wrap the beam on the cable for 3-4 turns.

3.Repeat the operation of step 2, winding the remaining bundles to align the center color mark.

4.Make the center color of preformed armor rods that has been wrapped around as the center,The rubber clamp is divided into two halves inlaid in the pre-twisted wire outside, with a thin tape fixed.

5.Take the center half of the rubber clamp as the center,the outer wire and cable are arranged in parallel and to align the center of their color.make sure that the curve of the outer pre-stranded wire is in good agreement with the curved surface of the rubber clamp.The outer strands are wound on each side of the rubber jaws for 2-3 turns.

Our company has always been in line with the corporate philosophy of creating high-quality Aluminum Alloy Suspension Clamp for ADSS Short Span to serve customers, people-oriented, and honesty in the society. We insist on enhancing the value of the industry with high-quality products, constantly creating industry standards for quality, and fully satisfying the individual needs of diversified customers. We integrate into the globalization era with an open mind and a broad vision.
