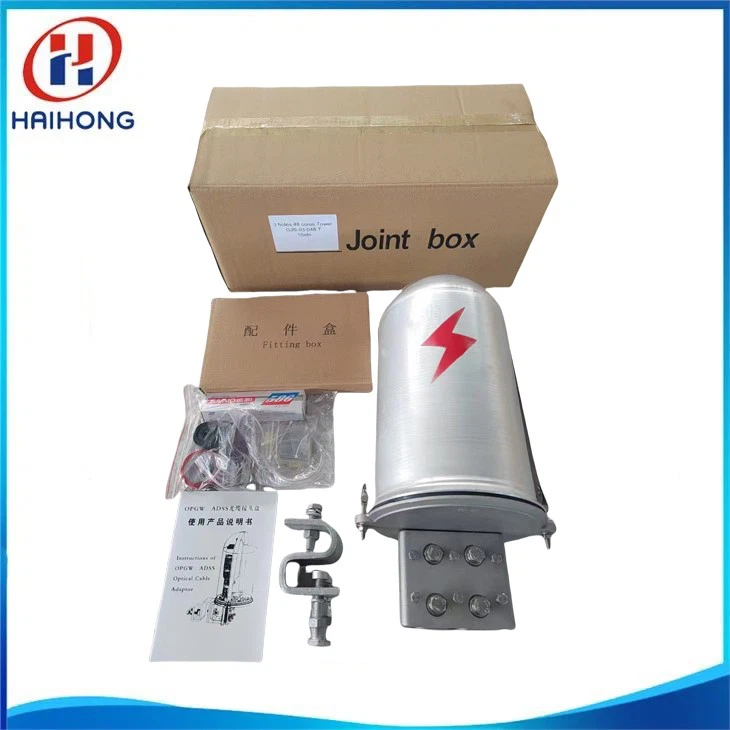

Optical Cable Splice Enclosure

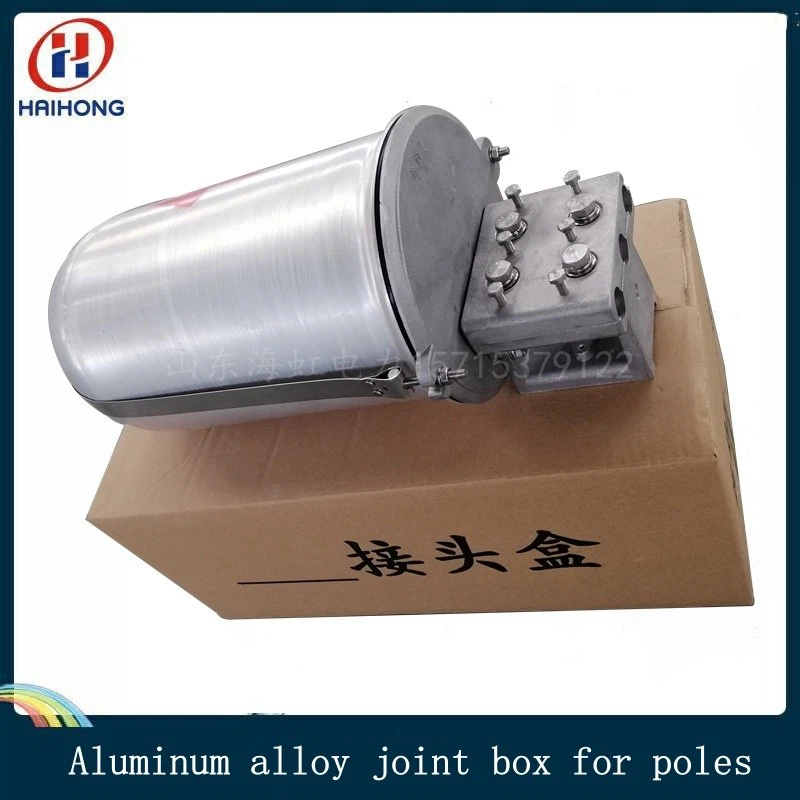

Application of aluminum alloy splice box: Optical Cable Splice Enclosure is suitable for the connection and protection of ADSS and OPGW optical cable splices.

1. The optical cable connectors and excess length utilize a feeding-type fiber storage method, with connector protection in the form of heat-shrinkable sleeves for reinforcement.

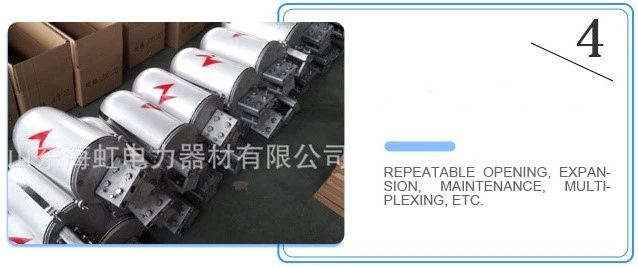

2. The splice enclosure is sealed with sealing rings and silicone, allowing for simple operation and repeatable opening, facilitating ease of use and maintenance.

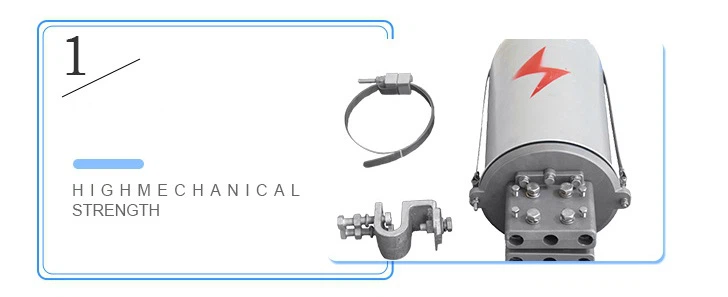

3. The optical cable splice box can be customized according to requirements, and equipped with dedicated mounting brackets for towers or poles.

4. The fiber storage tray adopts aluminum brackets, which are more lightweight and prevent accidents caused by the breakage of plastic brackets.

5. The inlet nozzle is processed using a precision lathe, significantly enhancing its sealing performance and preventing damage to the optical fiber.

6. The alloy shell is treated with electrochemical methods, making it corrosion-resistant and possessing excellent performance.

1. Overall length: 500mm, outer diameter: 200mm, inner diameter: 180mm.

2. Temperature performance: -40℃ to +60℃.

3. Electrical strength: 15KV DC, no breakdown for 2 minutes.

4. Seismic performance: Level 10, 6 times.

5. Sealing performance: 100kPa, 72 hours, with pressure remaining constant.

6. The maximum outer diameter of the optical cable is 22mm, and the maximum number of cores in a connector is 144.

7. The service life is 50 years.

1. Number of optical cable cores.

2. Number of entries and exits, as well as corresponding cable diameters.

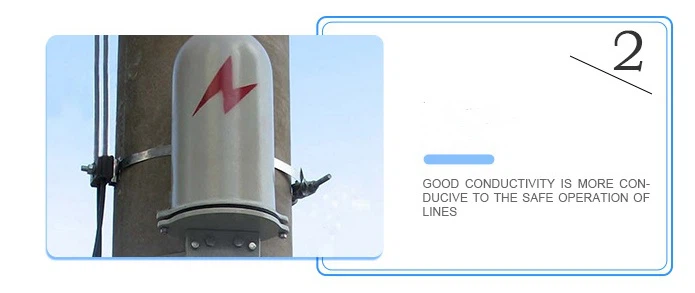

3. There are two types: pole use and tower use. If it is for pole use, the pole diameter needs to be provided.
