ACSR Full Tension Splices

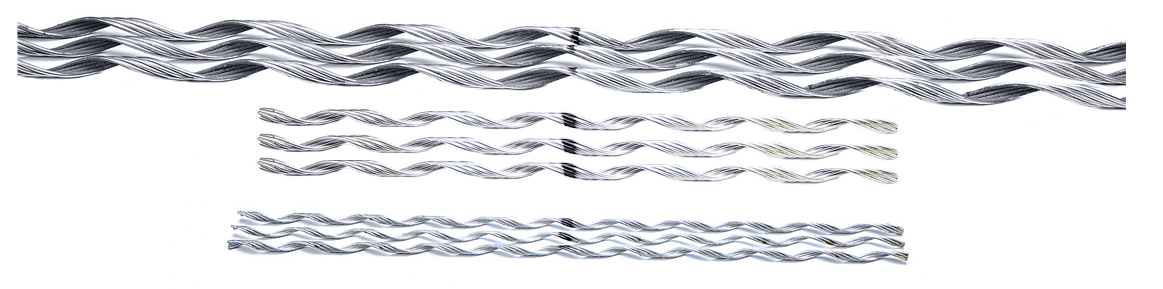

ACSR Full Tension Splices Full Tension Multi Piece Line Splice. Galvanised Steel & Aluminium Alloy for 6/1 or 30/7 ACSR conductors Full Tension Line Splices are designed for splicing ACSR conductor. The multi piece design holds both the inner steel core, and the outer layers. In some cases...
Product Introduction
ACSR Full Tension Splices
Full Tension Multi Piece Line Splice. Galvanised Steel & Aluminium Alloy for 6/1 or 30/7 ACSR conductors

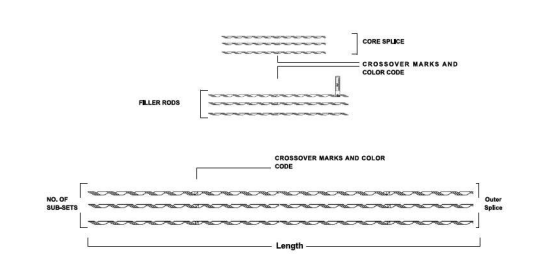

Full Tension Line Splices are designed for splicing ACSR conductor. The multi piece design holds both the inner steel core, and the outer layers. In some cases filler rods may be needed to bridge the gap between the inner core and the outer strands. The conductor will be returned to full conductivity when spliced with TNFTS.
On ACSR conductors, full tension line splices hold at least 90% of the ultimate tensile strength of the conductor.
Conductors should be scratch brushed and greased properly prior to installation to ensure a long term joint, and never placed closer than 360mm from other fittings. Do not reuse these fittings.
|
No. |
Type |
Wire |
Material |
Rods diameter/mm |
Rods number |
Length/mm |
Weight/kg |
|
|
1 |
JL-50/8 |
ACSR |
Aluminum clad steel wire |
Inner layer |
3 |
5 |
508 |
0.15 |
|
Aluminum alloy wire |
middle layer |
|||||||
|
Aluminum alloy wire |
Outer layer |
3.1 |
11 |
1372 |
0.31 |
|||
|
2 |
JL-70/10 |
ACSR |
Aluminum clad steel wire |
Inner layer |
1.8 |
8 |
406 |
0.06 |
|
Aluminum alloy wire |
middle layer |
1.8 |
13 |
406 |
0.03 |
|||
|
Aluminum alloy wire |
Outer layer |
4.2 |
10 |
1499 |
0.6 |
|||
|
3 |
JL95/15 |
ACSR |
Aluminum clad steel wire |
Inner layer |
2.2 |
8 |
508 |
0.12 |
|
Aluminum alloy wire |
middle layer |
2.2 |
14 |
508 |
0.07 |
|||
|
Aluminum alloy wire |
Outer layer |
4.2 |
11 |
1905 |
0.85 |
|||
|
4 |
JL-120/20 |
ACSR |
Aluminum clad steel wire |
Inner layer |
2.2 |
10 |
508 |
0.1 |
|
Aluminum alloy wire |
middle layer |
3 |
12 |
508 |
0.1 |
|||
|
Aluminum alloy wire |
Outer layer |
5 |
11 |
2057 |
1.09 |
Aluminum ACSR Full Tension Splices,ACSR Full Tension Splices,Aluminum alloy ACSR Full Tension Splices,Splices ACSR Series - Full Tension,Aluminum outer sleeve for full tension splice kit,Line Splices
Full Tension Line Splices are designed for splicing ACSR conductor. The multi piece design holds both the inner steel core, and the outer layers. In some cases filler rods may be needed to bridge the gap between the inner core and the outer strands. The conductor will be returned to full conductivity when spliced with TNFTS.
On ACSR conductors, full tension line splices hold at least 90% of the ultimate tensile strength of the conductor.
Conductors should be scratch brushed and greased properly prior to installation to ensure a long term joint, and never placed closer than 360mm from other fittings. Do not reuse these fittings.
Made from Aluminium Alloy for AAC, AAAC and ACSR conductors.
Line Splices are designed for splicing and repairing Aluminium conductors. If scratched and greased properly prior to installation Line Splices will restore full conductivity of the conductor. Line Splices will hold at least 90% of the ultimate tensile strength of the conductor.
Never reuse Line Splices. Any repairs should be made to span damage only, never closer than 150mm from an existing fitting.
